Lonsdor K518ISE Key Programmer is
a newest key programmer tool which is verified to program BMW FEM BDC
key (for all key lost, enter 32-bit ISN code) in the dismantling FEM
module method (same as Xhorse VVDI2, Yanhua BMW FEM key programm, etc.),
what a nice feature is the Lonsdor official notice: the BMW-FEM/BDC is
updated for free, no more charge for the authorization or update, no
more token.
Lonsdor K518ISE program BMW FEM BDC key on Youtube:
Steps with words & pictures:
Tap Immobilization->BMW-> by IMMO system->FEM/BDC
BMW-FEM/BDC Functions introduction:
1- read key information: read out key data and prompt that if the immobilizer system needs pre-processing.
2-
Pre-process FEM/BD system: backup original coding data, read out
EEPROM, generate the service mode EEPROM data, program, restore the
original EEPROM data, restore coding codes (for the details, please read
the operation guide).
3- Generate dealer key: program a new key as a dealer key.
4- enable key: set a “disabled” key to “used”.
5- disable key: set a “used” or a “lost” key as “disabled”.
6- delete key: delete keys that are unnecessary or lost.
Steps:
Mainly 3 steps: read key info->Pre-process FEM/BD system->Generate dealer key.
Read
the operation instructions in the below picture, as you can see, when
you make dealer key for all key lost, enter 32-bit ISN code.
Step 1. read key info
Before
operating other functions, you must read key info firstly including
VIN, type, current key position and kilometers etc (see below picture).
Step 2. pre-process FEM/BDC system
1: OBD backup the original coding data:
Connect the FEM/BDC system on the car or the test platform, then backup the original coding files via OBD.
2: read out EEPROM backup data & generate service mode EEPROM:
Remove the FEM/BDC module, find out chip 95128 or 95256, read EEPROM data using an ECU programmer e.g VVDI-Prog, Orange5 etc.;
Importthe EEPROM data into the customfile folder of Lonsdor K518ISE;
Enter the program, read original EEPROM data and generate servicemode
EEPROM, export the service mode EEPROM data, write it into the chip
95128 / 95256 with the ECU programmer.
Restore FEM/BDC system, supply power to the car and connect via OBD
3: programming
This
procedure requires to be done on the BMW FEM/BDC test platform,
meawhile you have to ensure that Step 1 & 2 is finished.
Supply power to the FEM/BDC system and connect it to the OBD port.
4: restore EEPROM data
Remove FEM/BDC module, write the original EEPROM data (Step 2) into chip 95128/95256
Restore FEM/BDC system, supply power and connect to OBD
5: restore coding data
Load the coding files that are backed up in step 1, restore coding information via OBD
6: pre-processing is done.
Step 3: Generate dealer key.
1: Lonsdor K518ISE Programmer reads out data, select the key position to be generated.
2: Choose “by original car key” to make a dealer key, for all key lost: enter 32-bit ISN code

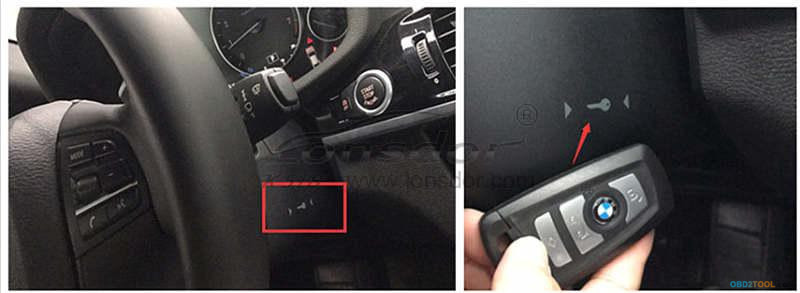

3: Put the original key near the car immo induction loop
4: Detecting the original key, read out immo data

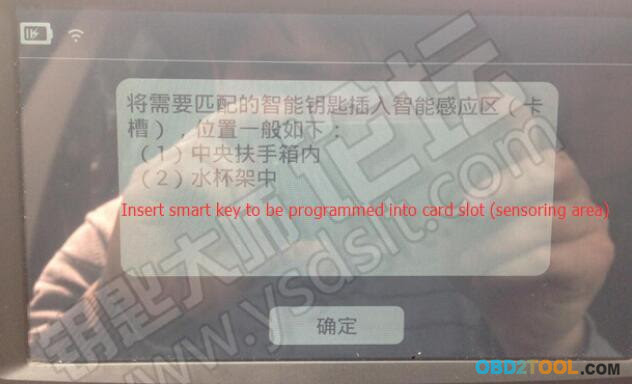

5: Put a new key near the car immo induction loop (see the above picture)
6: Detect the key key, learn new key (don’t move the key, keep stable)
7: key learn complete.
Step 4: disable the key
1:
Automotive Key Programmer Lonsdor K518ISE read out data, select the key ID position to disable
2: Put a working key near the car induction loop
3: K518ISE system tries to connect to CAS, disable the key in the current ID position, disable key with success.
Step 5: enable the key
1: Lonsdor K518ISE read out data, select the key ID position to enable
2: put a “used” key near the car induction loop
3: K518ISE system tries to connect to CAS, enable the key with current ID position, enable key successfully
Step 6: delete the key
1: K518ISE read out data, select the key ID position to delete
2: read FEM/BDC key pin code
3: delete the key successfully; the key position is blank
Tips (Very important):
1: Please remember to read key info before you want to operate any function.
2: 5 tips on pre-process FEM/BDC (all the dismantle operations need to power off)
1) via OBD to backup original code
2) Dismantle & read car EEPROM and import to K518ISE customfile.
3) Generate and write the service mode EEPROM data to FEM, re-install to program
4) Dismantle FEM and write back original EEPROM data, reinstall to restore EEPROM.
5) ECU programming: need 6 min, with power supply connected
6)
disconnect to the power supply, disassemble CPU, write the original
EEPROM data into the chip, install CPU on the car, connect to the power
supply, make sure communicate is successful
7) upload coding files (Step 1), restore original coding info to pre-process, then make a dealer key
Done! Lonsdor K518ISE program BMW FEM BDC key.
